Product Description

The XINPUGUANG 100W flexible solar panel is made of PERC Monocrystalline cell with a conversion rate of 23%. The weight is 4lb, which is 30% of the traditional solar panels.Size is 37.6×20.86×0.11 inch.The lightweight,portable nature of flexible solar panels makes solar panels more effective for RVs, caravan,boats,trailers,cabin,etc. , easy to install, plug and play.

Maximum power(Pmax) 100 Watt Open circuit voltage(Voc) 21.6 Volt Short circuit current(Isc) 6.11 A Maximum power voltage(Vmp) 18 Volt Maximum power current(Imp) 5.55A Temperature range -20??+80? Maximum system voltage 700V DC Weight 1.85kg(4 lb) Size 37.6×20.86×0.11 in Standard Test Conditions 1000w/m2?Temperature 25?,AM=1.5

200W solar system connection diagram 12V/parallel 24V/in series

20A charge controller

Battery voltage?12V/24V autosuitable for ?lead acid batteries? lithium ionsBuild-in short-circuit protection,open-circuit protection,reverse Extension cable

Model: 13AWGNumber of cores: single core multiple strandsVoltage rating: 0.6/1KVRated voltage: 1000Vlength?10FT Cable with alligator clip

Model: 13AWGNumber of cores: single core multiple strandsVoltage rating: 0.6/1KVRated voltage: 1000Vlength?10FT in parallel connector

Maximum working voltage:DC1000VShell Protection degree:IP67Specification of Connecting Line: 4mm²Contact Material: Copper,Tin plate

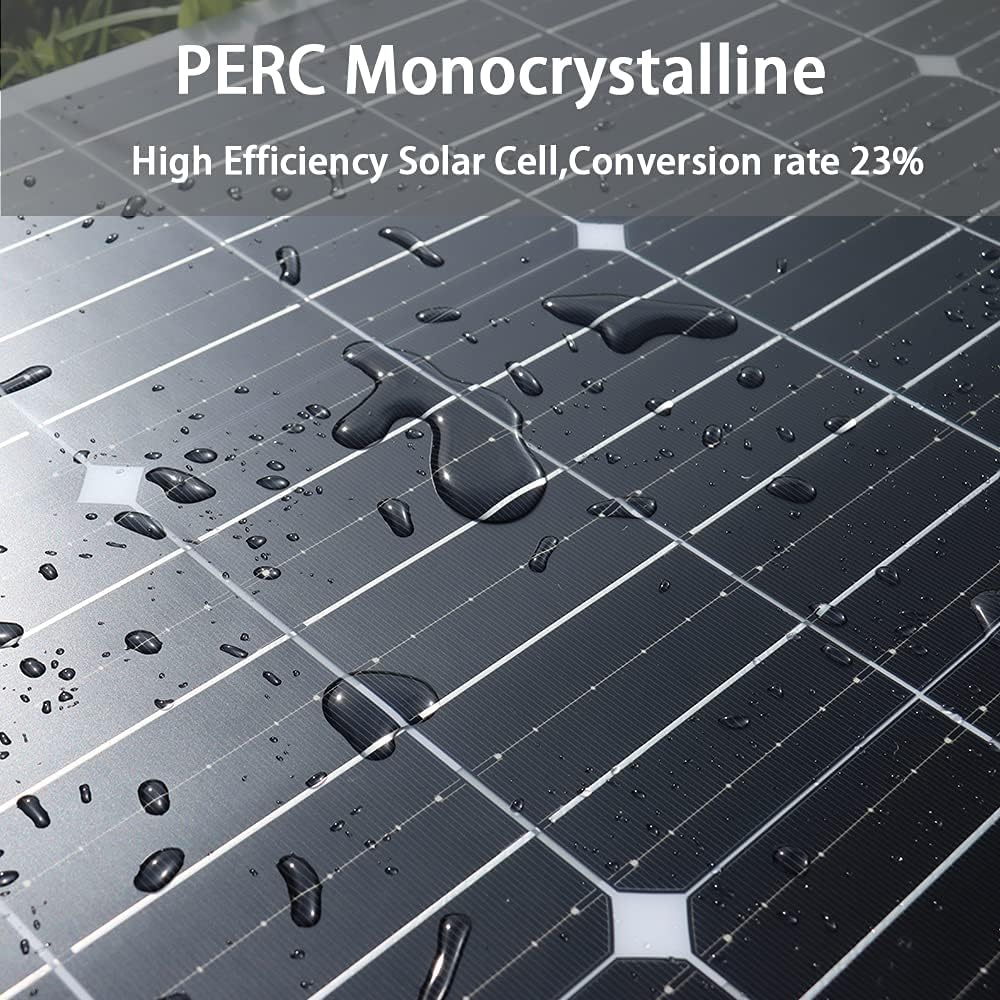

*High Efficiency: solar panels use new Perc solar monocrystalline cells, up to 23% conversion rate, 100w solar panels are smaller, lighter and more portable
*Semi-Flexible: The plastic back sheet can be curved to a maximum 30 degree arc and mounted on RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface.
*Thin & Lightweight?100W solar panel weighs approximately 4lb,Thickness is 0.1in? weighs 70% less than conventional solar panels, making transportation and installation a breeze.
*Practicality: Light energy converts electricity, Practical and suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas
*Nice Details: The component contains a bypass diode, and the circuit uses input over current protection and reverse protection design.The solar panel has 6 grommet mounting holes are available to attach fasteners?and can also be installed with silicone and adhesive tape.
