Product Description

Key Features

Easy Installine

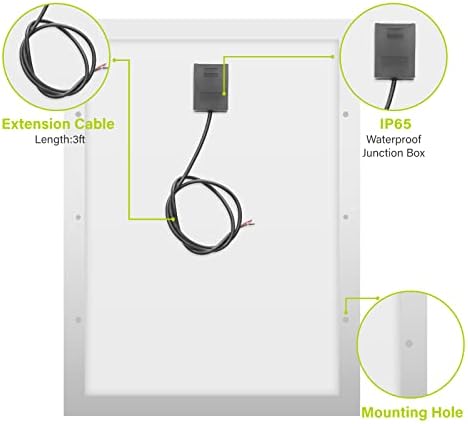

The panel comes with four easy mounting holes with four diameter 6.5 mm mounting holes, and two diameter 5mm grounding holesWith pre-attached 3ft wire with bare endsCompatible with Newpowa z-bracket, tilt adjustable mount, and pole/wall bracket, the panel can be installed for various applications

Durable

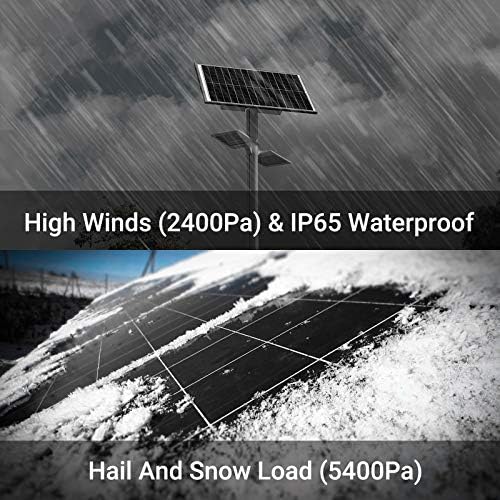

Heavy-duty anodized frame with pre-drilled holes for mountingRugged design to withstand high winds (2400Pa), hail, and snow load (5400Pa)Durable TPT back sheet – dissipates heat to insure better panel performance and lifespan

Versatile

Supported by a number of mounting options, the panel can adapt flat surface mounts (Z-bracket, tilt adjustable bracket) and pole/wall installationDespite the smaller wattage output, the panel can be used for many applications such as gate openers, security system, solar lighting, electric fences, battery maintainer, etc.

Specification

Dimension: 19.29*14.37*1.10 inchesWeight: 4.78 lbsMax Power Output(W): 30WVoltage MPP Vmp(V): 17.37VCurrent MPP Imp(A): 1.73AVoltage Open Circuit Voc(V): 20.04VShort Circuit Current Isc(A): 1.83A

FAQ

1: Does a Solar Panel produce full power?

A: In most cases, it is normal for a solar panel to not be able to provide its full nominal power.

Factors affecting the performance of solar panels:

Peak Sun Hours? Sunlight Angle? Operating Temperature? Installation Angle? Panel Shading? Adjacent Buildings Etc…

2: How to test a solar panel?

A: The ideal conditions: Test in the noon, under a clear sky, panels should be at 25 degrees tilted towards the sun, and the battery is at a low state/less than 40% SOC. Disconnect the solar panel from any other loads, using a multimeter to test the panel’s current and voltage.

3: How does temperature affect solar panel efficiency?

A: Solar panels are generally tested at about 77°F/25°C and are rated to perform at peak efficiency between 59°F/15°C and 95°F/35°C. Temperature going up or down will change the efficiency of the panels. For example, if the temperature coefficient of power is -0.5%, then the panel maximum power will be reduced by 0.5% for every 50°F/10°C rise.

4: How to install our solar panels using different brackets?

A: There are mounting holes on the panel frame for easy installation using a variety of brackets. Most compatible with Newpowa’s Z-mount, tilt-adjustable mount, and pole/wall mount, making panel mounting suitable for a variety of applications.

5: Can I connect different solar panels together?

A: Though mixing different solar panels is not recommended, the mismatch can be achievable as long as each panel’s electrical parameters (voltage, current, wattage) are carefully considered.

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.6 out of 5 stars
596

4.6 out of 5 stars
596

4.5 out of 5 stars
439

4.6 out of 5 stars
433

4.6 out of 5 stars
248

Price

$21.49$21.49 $26.49$26.49 $35.99$35.99 $37.99$37.99 $59.50$59.50

MAX Watt
5W 10W 20W 25W 50W

Dimensions (in.)
8.86×7.68×0.71 15.35×7.68×0.71 15.35×14.17×0.91 15.94×14.37×0.91 29.13*14.37*1.18

Weight (lbs)
1.25 2 3.63 3.80 7.3

?IP67 Waterproof?Weather proof high efficiency solar panel and waterproof charge controller allows you can use this solar charge kit both inside and outside.
?Easy Installation?Pre-attached 3ft bare ends wire, pre-drilled mounting holes on the frame allow for easy and quick install.
?Versatile?Perfect for 12V off-grid applications, such as gate openers, fences, security cameras, lights. Charging the battery of boats, RVs, SUVs, etc.
?Warranty?2-year limited material and workmanship warranty. 10-year 90% output warranty. 25-year 80% output warranty.
