Price: $179.99
(as of Jun 06, 2023 12:56:58 UTC – Details)

Product Description

JJN 100w Solar Panel 12V makes of Grade A+ monocrystalline, The solar cells for up to 22% of the max efficiency and add bypass diodes to this 100 watt solar panel, which can minimize power drops caused by shade and ensure excellent performance in low-light environments.

12v 100 Watt Solar Panel Specifications

Maximum Power: 100W
Open-Circuit Voltage (Voc): 24.3 V
Short-Circuit Current (Isc): 5.21 A
Optimum Operating Voltage (Vmp): 20.4 V
Optimum Operating Current (Imp): 4.91 A

Step One

Connect PWM controller and battery.

Step Two

Connect the solar extension cable to the controller. Tips: One end of cable needs to be cut with scissors to leak out the copper wire and connect.

Step Three

Finally, connect the extension cable to the connector of the solar panel.

Step Four

Check that the entire off-grid system is properly installed.

100W/200W/300W Solar Panel Kit

Charge Controller

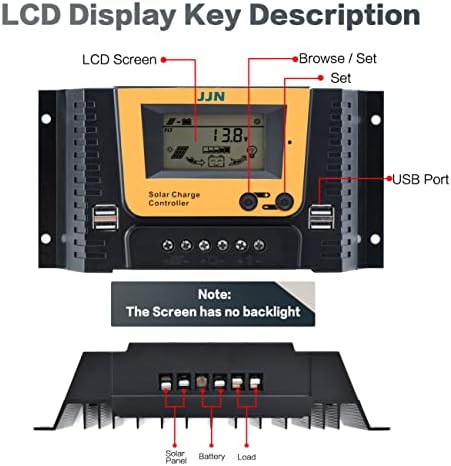

12V/24V 20A PWM Charge Controller

Charge Controller

12V/24V 30A PWM Charge Controller

Charge Controller

12V/24V 40A PWM Charge Controller

Solar Panel Cables

1 PairTC Wire: 8FT 12AWG + 1 Pair Extension Cable: 20FT 12AWG

Solar Panel Cables

1 PairTC Wire: 8FT 10AWG + 1 Pair Extension Cable: 20FT 10AWG

Solar Panel Cables

1 PairTC Wire: 8FT 10AWG + 1 Pair Extension Cable: 20FT 10AWG

Solar Panel Mounting Backets

1 Set (4 Pieces) Z Brackets

Solar Panel Mounting Backets

2 Set (8 Pieces) Z Brackets + One Pair 3 Way Connector

Solar Panel Mounting Backets

3 Set (12 Pieces) Z Brackets + One Pair 4 Way Connector

You May Need

Energy Storage

1280WH

Power Input

1000W

Support Solar Panel

100-350W

Performance

High Efficiency

Performance

High Efficiency

Performance

N/A

Widely Application

??Upgraded Design?JJN solar panel kits are upgraded to the latest half-cut cell technology, which makes the solar panels obtain better and more stable performance. Compared to regular solar panel, half-cut cell technology can reduce power loss, lower solar panel temperature and reduce the impact of shading on performance.
??Easy to Installation?Each 12 volt solar panel 100w has specially designed pre-drilled holes for easy installation. It can fully meet the installation needs of various applications. It is compatible with JJN’s Z mounting Brackets in the kit. At the same time, we are equipped with two pairs of wires, which can easily connect solar panels, controllers, and external batteries. There is no need to choose additional wires.
??What You Get?JJN 200w solar panel kit are very friendly to starters. The included 30A charge controller can make this solar system suitable for different 12V batteries, such as Wet, Gel, MF, EFB, and AGM. It can be applied to RV, Camper, boat and home green energy storage.
??Long Warranty?As a professional solar system manufacturer?We promise an extra-long transferable power output warranty of 25 years. Whenever you encounter any problems, JJN Solar Panels Service will actively provide you with professional off grid system solutions.
