Installation Method

1 STEP1 2 STEP2 3 STEP3 4 STEP4&5

1 IP68 Waterproof 2 Drop Temperature 3 Reliable Package 4 Connect To Battery 5 Connect To Power Station

Specific Parameters–Single 200W Fiberglass Flexible Solar Panel

Maximum Power (W) 200±5% W Open Circuit Voltage Voc (V) 20.1±5% V Max Power Voltage Vmp (V) 17.1±5% V Max Power Current Imp (A) 11.7±5% A Short Circuit Current Isc (A) 12.28±3% A Solar Cells Efficiency 23% Product Diameter (IN) 58.1 x 31 x 0.08 inches Net Weight (kg / lb) 3.2 kg / 7 lbs Application Class Class A Max Static Load (front) 2400 Pa Max Static Load (back) 2400pa Series Fuse Rating 10A

Pre-drilled holes on the back of the panel allow you to easily install them without any heavy tools.

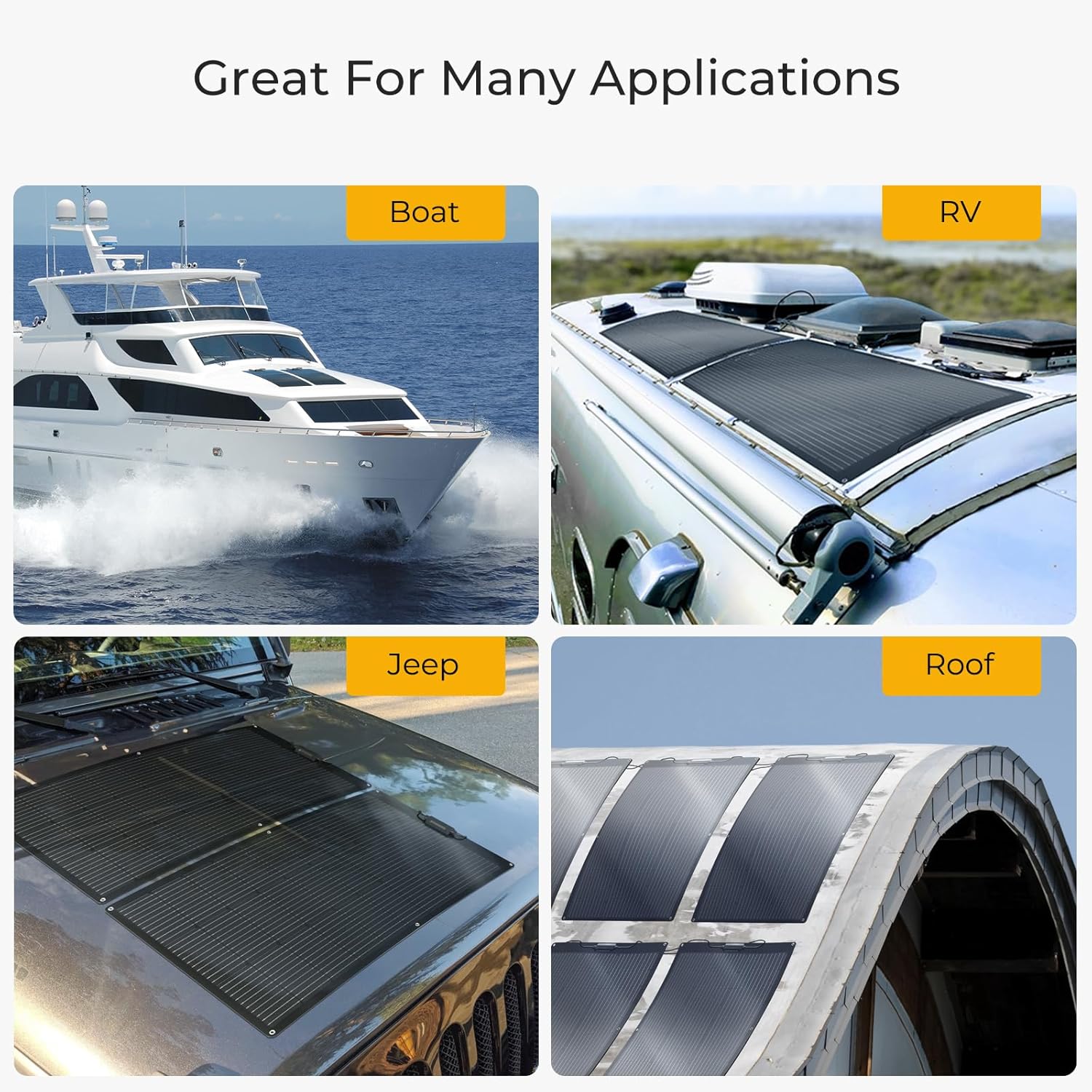

1 RV 2 Outdoor 3 Boat 4 Car 5

Related Solar Products

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.4 out of 5 stars
248

4.9 out of 5 stars
59

4.5 out of 5 stars
53

4.2 out of 5 stars
105

4.7 out of 5 stars
8

4.3 out of 5 stars
340

4.3 out of 5 stars
65

Price

$209.99$209.99

$139.99$139.99

$599.99$599.99

$149.99$149.99

—

$39.99$39.99

$369.99$369.99

Features

9 Busbar

270° Flexible

360° Flexible, Light & Thin

12V/24V

Upgraded BMS & Extra 5% Power

Backlit Display

Pure Sine Wave

Voltage

22.5±3% V

19.8±5% V

25V

12V/24V

11.4 x 8.26 x 7.67 inches

12V/24V

DC 12V to AC 110V

Dimension

58.27 x 27.76 x 1.38 inches

39.6*23.7*0.08 inches

25.4 x 78.7 x 0.06 inches

10.02 x 8.25 x 4.91 inches

5.51 x 3.74 x 1.27 inches

6.6 x 4.5 x 2.1 inches

12.4*8.07*3.54 inches

Weight

24 lbs

3.8lb

6.68 lbs

4.93 lbs

26.6 lbs

0.9 lbs

11.46 lbs

One-on-one Customer Support

?

?

?

?

?

?

?

Double Fiberglass Protect increases the impact resistance. No worry about the crack. Double glass fiber is placed on the upper and lower layers of the mono solar cell for protection, which can avoid damage to the mono solar cell to the greatest extent.
Max To 270° Flexible. Matches more curved surfaces, allowing you to install where rigid solar panels cannot. Make full use of the limited space on the roof or even the curved part of the front of the car.
ETFE Covering Material. Using ETFE instead of PET, will not delaminate after long-term use, so it has a longer service life. It has anti-scratch/self-cleaning/sand-proof capabilities and can resist impact and abrasion, preventing collisions and possible wear, scratches, etc. This happens frequently during transportation and maintenance activities.
Lightweight and Easy to Carry. Ultra Lightweight-Only 7 lbs and Thin-Only 2mm. The BougeRV factory uses special lamination technology to make fiberglass flexible solar panels light and thin, leading in the market, and easy to move.
Multiple Protective Material Insulation. Effectively reduce module temperature by -0.39%/?, and improve output power By 6W.
10BB Cell Design. More Busbar, More Power. BougeRV 200W glass fiber flexible solar panel uses the high-level 10BB cell design with a 23% highest conversion rate. It makes the solar panel have a longer service life. Increase the cell receiving surface, a thinner ribbon reduces the covered area by 22%. Also, it can charge a 12V battery or a 24/48V battery by wiring several solar panels in series.
Easy installation. There are pre-punched holes for easy installation. You can also apply glass glue for quick installation.
Durable & User Friendly. The sturdy panel can withstand high wind (2400 Pa) and snow loads (5400 Pa) and perform excellently in low-light environments. IP67 Rated Waterproof Junction Box can isolate environmental particles and low-pressure water jets. Diodes are pre-installed in the junction box, with pre-attached 3ft Cables. Pre-drilled holes on the back of the panel allow you to quickly install solar panels without using heavy tools.
1-on-1 Solar Solution by BougeRV Tech Support & Warm Warranty. BougeRV promises a 5 years product warranty a 25-year power warranty and lifetime warm-hearted service for you. Please get in touch with us whenever you have any problems with the BougeRV solar panel. We will provide you with a professional guide to building a solar system.
