Product Description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

Battery&Inverter

Battery&Inverter

One-Stop

1 Extra 5 YEARS

2 Parallel Design

3 Work for 12/24V Battery

4 Class B System

5 Travel Trailer System

Specific Parameters

Maximum Power (W) 200±3% W Open Circuit Voltage Voc (V) 36.4V±5% Max Power Voltage Vmp (V) 31.7V±5% Max Power Current Imp (A) 6.3A±5% Short Circuit Current Isc (A) 6.6A±5% Solar Cells Efficiency 25% Power Life 30 Years Product Diameter (IN) 50.7 x 30.2 x 1.4 inches Net Weight (kg / lb) 22.5lb/10.2KG Application Class Class A Max Static Load (front) 2400 Pa Max Static Load (back) 2400pa Series Fuse Rating 15A Max. System Voltage 1000V DC

Related Solar Products

Add to Cart

Add to Cart

Customer Reviews

4.6 out of 5 stars 71

4.4 out of 5 stars 93

4.4 out of 5 stars 92

4.2 out of 5 stars 196

3.2 out of 5 stars 3

4.2 out of 5 stars 358

4.3 out of 5 stars 12

Price

—

—

—

$149.99$149.99

—

$31.99$31.99

—

Features

16 Busbar

270° Flexible

360° Flexible, Light & Thin

Low-temp Cut-off

Upgraded BMS & Extra 5% Power

Backlit Display

Pure Sine Wave

Voltage

24.4±5% V

19.8±5% V

25V

12V/24V

12.8V

12V/24V

DC 12V to AC 110V

Dimension

51.6 x 30.2 x 1.4 inches

39.6 x 23.7 x 0.08 inches

25.4 x 78.7 x 0.06 inches

10.02 x 8.25 x 4.91 inches

11.4 x 8.26 x 7.67 inches

6.6 x 4.5 x 2.1 inches

12.4*8.07*3.54 inches

Weight

22.8 lbs

3.8 lbs

6.68 lbs

4.93 lbs

26.6 lbs

0.9 lbs

11.46 lbs

One-on-one Customer Support

?

?

?

?

?

?

?

N-TYPE Technology Solar Cell, 25% Highest Conversion Rate. BougeRV N-TYPE 200-watt solar panels are made of N-TYPE solar cells. Compared to P-TYPE solar cells, N-TYPE solar cells add an advanced Industrial Tunnel Oxide Passivated Contact to the back of ordinary solar cells, this advanced technology allows the majority carrier to pass and restrains the minority carrier, so absorbs more light, making it low resistance loss and high voltage.
Smallest Size, MAX POWER. 16BB cell design further improves the current collection capability. Makes the solar panel have a longer service life. Increase the cell receiving surface, thinner ribbon reduces the covered area by 22%.
Bifacial Design Increases the solar output by 30%. Instead of having an opaque back, BougeRV bifacial solar panels feature a transparent backside, allowing it to absorb solar energy from both sides, such as direct sunlight, refracted sunlight, and diffuse sunlight. N-type solar cells have an 80% bifacial gain while P-TYPE have only a 70% bifacial gain.
One Panel Compatible With 12V/24V Battery. The open circuit voltage of N-TYPE 200W solar panels is 36.4V. No need to connect in series or parallel, one panel can charge a 24V battery, avoiding current losses caused by series and parallel connections

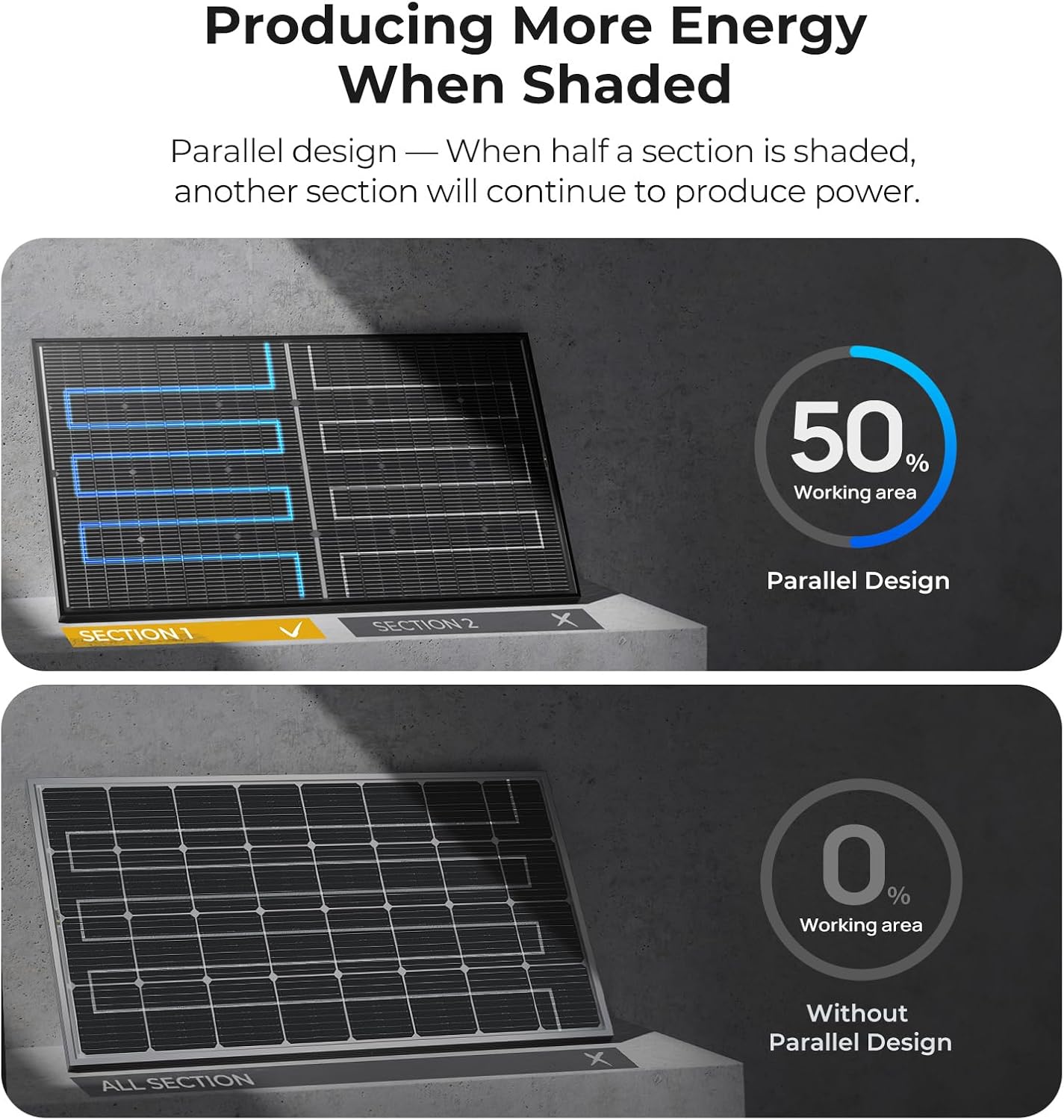

Parallel Design Producing More Energy When Shaded. BougeRV 200-watt solar panel performs better in the shaded, when half a section is shaded, another section will continue to produce power.
More 5-Year Power Lifespan. According to laboratory test data, N-TYPE solar panels can have a service life of 30 years, while P-TYPE solar panels only have a service life of 25 years. Therefore, from a long-term investment perspective, investing in N-TYPE solar panels will yield better returns.
Compatibility and Wide Usage. Compatible with on-grid and off-grid inverters, the BougeRV N-TYPE 200W solar panel is suitable for powering the house or for outdoor use. Corrosion-resistant aluminum material can withstand the changing outdoor environment and prolong its service life. It is easy to use and mount (pre-drilled holes on the back of the panel), and sophisticated to use with your RVs, boats, and other outdoor equipment. Besides, it is suitable for charging golf cart lithium batteries.
1-on-1 Solar Solution by BougeRV Tech Support. BougeRV promises a 10-year product tech support and alltime warm-hearted service for you. Please reach out to us whenever you have any problems with the BougeRV solar panel. We will provide you with a professional guide to building a solar system.
